omega:ONE

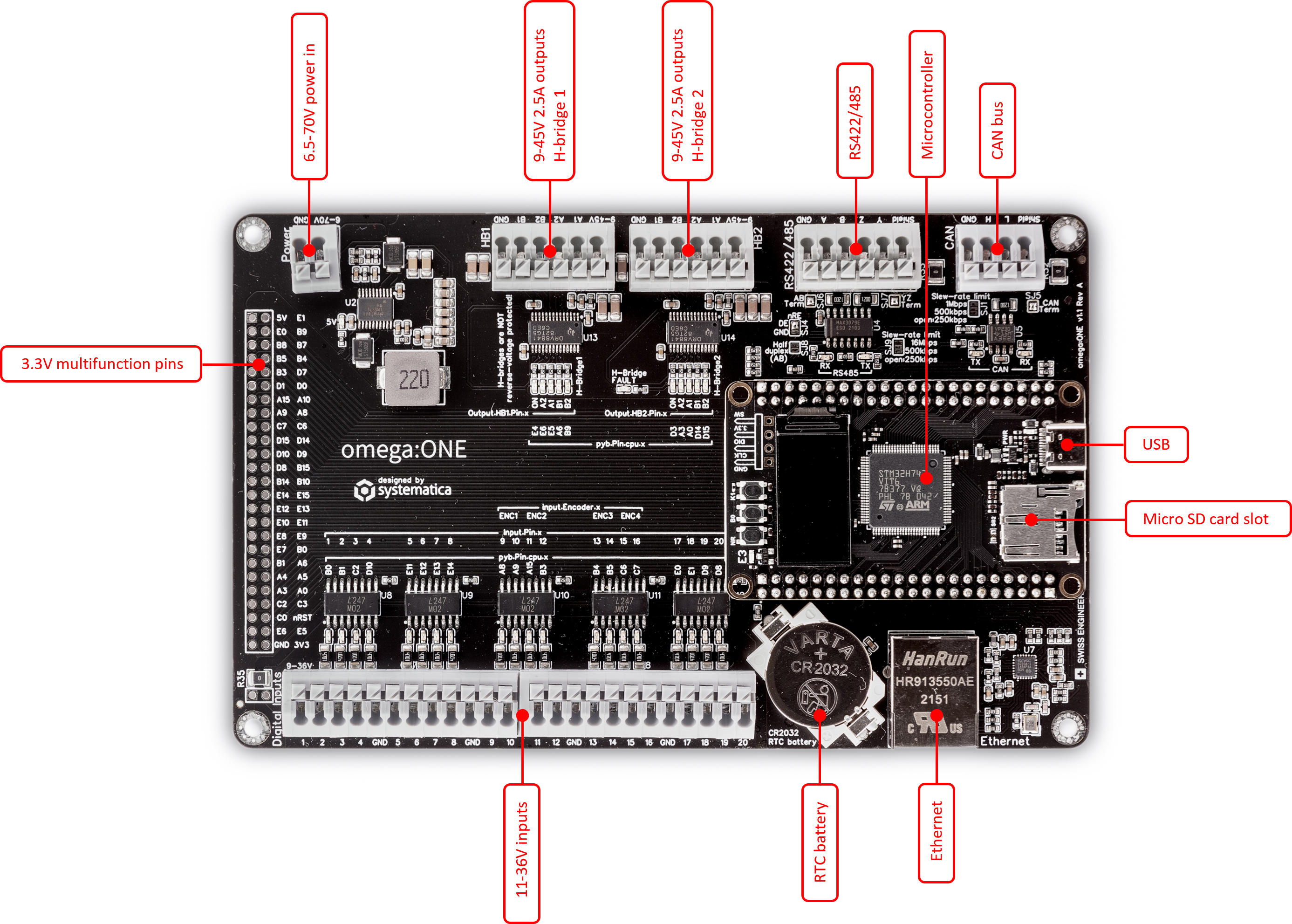

Board overview
omega:ONE combines industrial hardware with the ease and speed of programming of MicroPython. This allows engineers to implement prototypes and products in a fraction of the time required for traditional C/C++ based development.
Key features:
Runs MicroPython out of the box
Provides common industrial communication interfaces, such as Ethernet, Can Bus and RS422/RS485
Twenty 12/24V opto-isolated digital inputs
Four 12/24V H-bridges with up to 2.5A peak output capability (can be also used as eight independent outputs)
A microSD card slot to store large amounts of data, such as for extensive datalogging
A battery-backed real time clock keeps track of the datetime also after power cycles
Very wide supply input voltage range of 6.5V to 70V
The board can also be supplied directly through the USB-C connector for ease of use while developing
Firmware updates are possible
omega:ONE is suitable for a variety of industrial and research applications, such as:
Programmable Logic Controller
Rapid prototyping
Control systems for test setups
Signal/subsystem simulators
Data logging
Industrial IoT applications
Specifications
Technical specifications:
STM32H743VIT6 32Bit microcontroller
Cortex M7 CPU running at 400 MHz
2048 KB internal flash ROM
1024 KB internal RAM
8 MB external QSPI flash
6.5-70V power supply input
20x 9-36V opto-isolated digital inputs
4x 9-45V 2.5A peak / 1.75A rms H-bridges, also usable as 8x independent power outputs
46x 3.3V multifunction pins (GPIO/PWM/ADC/DAC/UART/SPI/I2C), partly shared with other resources
microSD card slot (up to 32 Gb)
Real time clock with battery backup
USB-C inteface (and 5V supply input)
1x 10/100 Mbit Ethernet
1x CAN Bus
1x RS422/485 half- or full-duplex
Mechanical specifications:
Size: Euro card 160x100x23mm
Weight: 120g

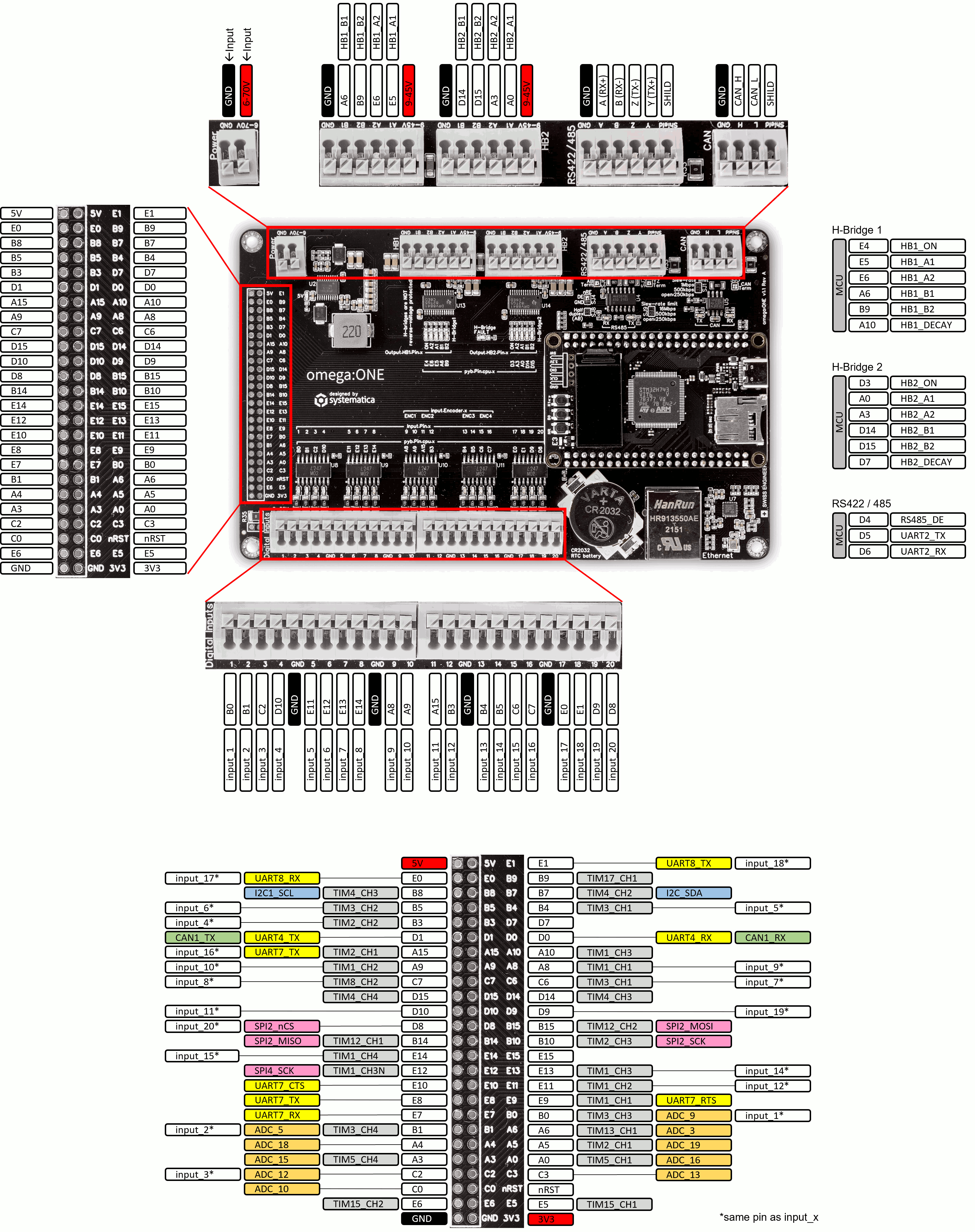

Pinout
Downloads
omegaone_flyer.pdfomegaone_minimalDetail.stp
